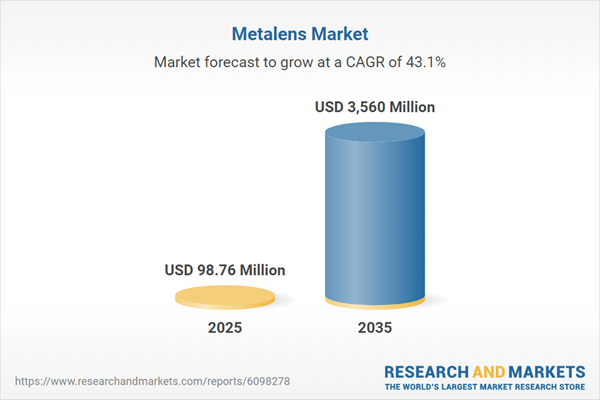

Metalens Market - A Global and Regional Analysis: Focus on Products, Applications, and Country-Level Analysis - Analysis and Forecast, 2025-2035

Global Metalens Market Overview

Global Metalens Market Segmentation by Application

Global Metalens Market - Application Segments

• Consumer Electronics: High-volume driver led by smartphone camera modules, AR/VR/MR headsets, and wearable devices seeking to collapse multi-element lens stacks into a single metasurface, saving space and weight while enabling new industrial-design form factors. Early adopters leverage wafer-level NIL production for sub-$1 cost per lens once scale is achieved. Consumer electronics has huge potential in global metalens market.
• Healthcare & Medical Imaging: Endoscopes, capsule cameras, OCT probes, and point-of-care diagnostic chips benefit from sub-millimeter metalenses that deliver diffraction-limited resolution in confined spaces. Biocompatible TiO? or SiN platforms and chromatic-aberration control make metalens optics attractive for minimally invasive and disposable devices.
• Automotive & LiDAR: ADAS and autonomous-vehicle LiDAR units need compact beam-steering and wavelength-selective optics; metalenses reduce system size and weight, withstand vibration, and offer polarization control for 905 nm / 1,550 nm emitters. HUD and in-cabin sensing cameras also target metalens integration for slimmer modules.
• Aerospace & Defense: Satellites, UAV payloads, and thermal imagers value the mass reduction and multifunctionality (e.g., combined focusing and filtering) of mid-IR metalenses fabricated on chalcogenide substrates. Radiation-hard materials and broadband efficiency underpin interest for spaceborne optics.
• Optical Communications: Silicon-photonics transceivers, fiber-to-chip couplers, and VCSEL collimators employ near-infrared metalenses to improve coupling efficiency and polarization management, supporting densification of data-center and 5G front-haul links.
• Security & Surveillance: Compact board cameras and drone payloads require thinner optics for weight-constrained platforms; metasurface lenses offer fast apertures and integrated spectral filtering for low-light imaging.
• Others: Industrial inspection, quantum-optics experiments, and scientific instrumentation exploring wave-front shaping and spin-selective focusing capabilities unique to metasurfaces.

Global Metalens Market Segmentation by Products

• The market is segmented by operating wavelength and fabrication method, each serving distinct performance windows and production-volume requirements.

Global Metalens Market - By Wavelength

• Ultraviolet (UV) Metalenses: Materials such as AlGaN or TiO2 enable sub-250 nm operation for semiconductor inspection and fluorescence bio-imaging; tight feature sizes require e-beam or deep-UV lithography, limiting early volumes to R&D and niche tools.
• Visible Metalenses: SiN or TiO2 platforms dominate 400-700 nm; primary target is smartphone/AR optics where single-element metasurfaces replace 6- to 8-stack plastic lenses, cutting module height by >30 %.
• Near-Infrared (NIR) Metalenses: Si or GaAs metasurfaces optimized for 850-1,550 nm power consumer-depth cameras, eye-tracking in XR headsets, and short-range LiDAR; benefits include polarization control and wide FoV with a single layer.
• Infrared (IR) Metalenses: Chalcogenide-glass or Ge/SiGe structures for 3-12 µm thermal imaging, gas sensing, and defense optics; low-loss mid-IR operation paired with athermal design reduces sensor-package volume for drones and handheld thermography.

Global Metalens Market - By Fabrication Method

• Nanoimprint Lithography (NIL): High-throughput, stamp-based replication suited to consumer-electronics scale; enables < 50 nm feature fidelity at wafer-level cost below US $0.50 per lens in volume, accelerating OEM adoption.
• Electron-Beam Lithography (EBL): Maskless, high-resolution patterning for prototype and low-volume custom optics; critical for UV and research-grade metalenses where sub-30 nm features are mandatory, though throughput remains limited.
• Laser Interference Lithography: Parallel writing of periodic pillar arrays enables cost-effective large-area metasurfaces for diffractive beam-shaping and sensing, albeit with geometry constraints versus NIL.
• Others (Focused Ion Beam, UV Lithography, etc.)

Global Metalens Market Segmentation by Region

Regional Overview

• The market is analyzed globally with a focus on regional dynamics, growth drivers, and challenges.

Key Regional Segments

• North America:
• Comprehensive evaluation of the U.S., Canada, and Mexico, highlighting regional growth factors, application trends, and competitive landscapes.
• Europe:
• Analysis of key markets such as Germany, France, the U.K., Italy, and other European countries, focusing on regulatory influences and market drivers.
• Asia-Pacific:
• Rapid expansion driven by countries such as China, Japan, South Korea, and other emerging markets with significant technological adoption.
• Rest-of-the-World:
• Insights into regions including South America, the Middle East, and Africa, detailing localized market challenges and growth opportunities.

Global Metalens Market Dynamics

Market Drivers:

• Miniaturization pressure in consumer electronics
• High-performance optics for LiDAR & sensing
• Rapid advances in NIL for high-volume yields

Market Restraints:

• Fabrication complexity & high capex
• Limited global metasurface-production capacity

Market Opportunities:

• Integration with AR/VR & holographic displays
• Partnerships between start-ups and semiconductor giants
• Emerging use in photonic computing & quantum optics

Research Methodology

• A robust research framework supports the analysis, integrating trend assessments, value chain and pricing forecasts, and comprehensive R&D reviews, including patent filing trends by country and company. Detailed regulatory and stakeholder analyses further enhance market insights.

Market Companies Profiled in Global Metalens Market

• Metalenz
• NIL Technology (NILT)
• Lumotive
• Jenoptik AG
• Edmund Optics
• Newport Corporation (part of MKS Instruments)
• SUSS MicroTec
• Zeiss Group
• Hamamatsu Photonics
• Thorlabs Inc.
